C4E-450.FG.V

C4E-450.FG.V

Motor: Cage type capacitor start external rotor motor

Impeller: Pressed from metal armor plate, impellers are welded to motor rotor and its surface is black and anti-corrosion

Fixed Guard: Steel wire is finished with black paint and anti-corrosion treatment

Allowable environment temperature and humidity range:(under unconcretionary condition): -30℃ ~ +75℃ (temperature) 0% ~ 95% (humidity)

Protection: Automatic recovery thermal protection

Withstand Voltage: AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation Grade: Design according to IEC61858 Grade F,

Protection Grade: IP44

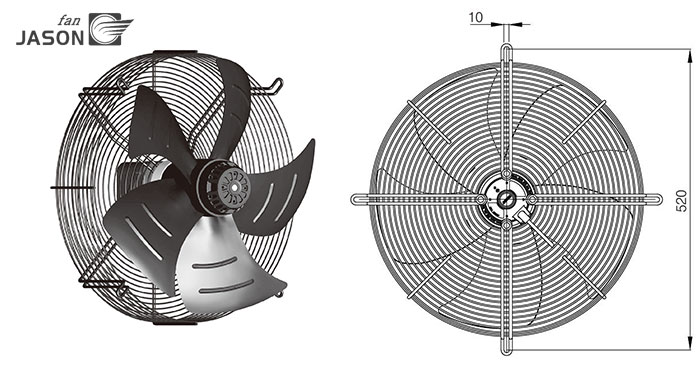

External Rotor Sickle Impeller C4E-450.FG.V

Technical Parameter

Reference based on the size of impeller, which helps you to quickly select the best choice for your installation

Example:
When you need fan motor 4 poles, input voltage 230V, impeller diameter Ø 350 mm, please choose FJ4E - 350

When you need 4 poles, impeller diameter 350 mm, fan needs basket-type protection guard, airflow direction from motor to guard, Please choose FJ4E - 350. FGV

We can customize your unconventional products.


Motor
Cage type capacitor start external rotor motor

Impeller
Pressed from metal armor plate, impellers are welded to motor rotor and its surface is black and anti-corrosion

Fixed Guard
Steel wire is finished with black paint and anti-corrosion treatment

Allowable environment temperature and humidity range:(under unconcretionary condition)
-30℃ ~ +75℃ (temperature) 0% ~ 95% (humidity)

Protection
Automatic recovery thermal protection

Withstand Voltage
AC 1,800V , 1 min at 0.5mA, 50/60 Hz

Insulation Grade
Design according to IEC61858 Grade F,

Protection Grade
IP44

Type

Motor

Rated Voltage

Frequency

current

Power

Speed

Max Air Flow

Static Pressure

Noise

Curve

Capacitor Motor

V

Hz

(A)

(W)+10%-20%

(min-1)

CFM

m3/h

(Pa)

(dB)

(μF)

FJ4E-450.FGV

M4E10203-AF

230

50

1.12

245

1350

3250

5500

105

68

8.0/450

60

1.50

340

1480

3560

6030

75

71

FJ4D-450.FGV

M4D10203-AF

400

50

0.66

240

1350

3250

5500

105

68

2.0/630

60

0.91

340

1480

3560

6030

75

71

FJ4ED-450.FGV

M4ED10203-AF

230/400

50

1.08/.62

222/220

1400

3360

5700

120

64

------

60

1.05/.61

306/305

1600

3840

6500

70

68

FJ6E-450.FGV

M6E10203-AF

400

50

0.62

132

930

2230

3780

70

62

4.0/450

60

0.73

168

1080

2590

4400

45

66
